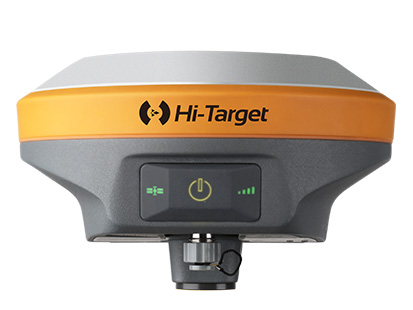

V90 Plus GNSS RTK System

V90 Plus GNSS RTK System

With the highly-integrated structure and design, the V90 Plus GNSS RTK combines network,Wi-Fi and built-in radio modules. High-performance measurement solutions are provided by tilt survey and quasi-dynamic collection techniques.

Product Information

Optional Transceiver UHF Radio

Three types of internal UHF radio provide different frequencies based on users’ requirements. The SATEL internal UHF radio is compatible with other radios.

Tilt survey and Electronic bubble

Achieves corner points measurement at an inclination of up to 30°. An optimized tilt survey algorithm and procedure with the electronic bubble can boost efficient fieldwork.

Quasi-dynamic technology

Self-developed technology of the GNSS RTK system, which greatly improves surveying accuracy in harsh environments through bespoke algorithms.

Product Parameters

8 mm H/ 15 mm V
Real-time kinematic precision

800+
Channels

GPS, GLONASS, Galileo, BDS, QZSS, SBAS, IRNSS
Signal tracking

Support multi-protocol radio
Receive & Transmit

8 mm +0.7 mm /
°tilt Tilt Survey Performance
